Axial Spring Seal - Conical AS18 / AS19

PDF PDF

CHARACTERISTICS:

• Unbalanced.
• Single conical Spring
• Dependent on the rotation direction.

OPERATING LIMITS

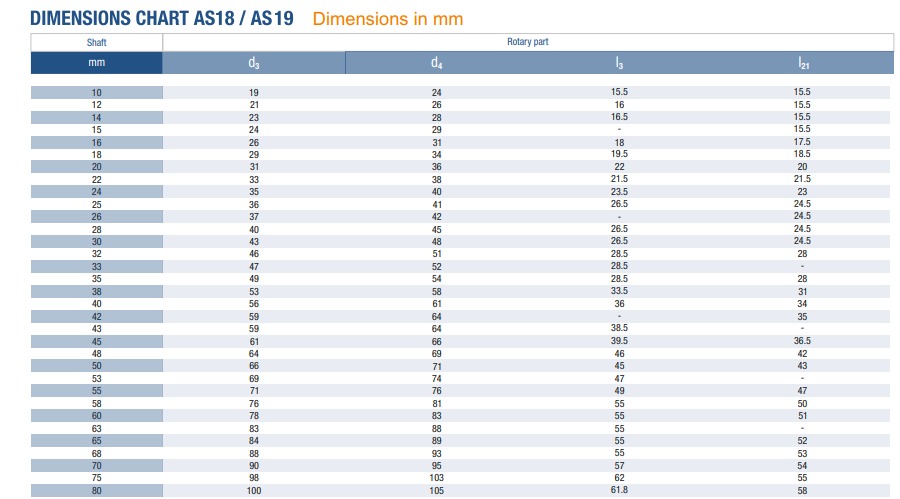

d1= 10 to 80 mm
p= 10 kg/cm²
v= 20 m/s t= 20 To +200ºC(*)

(*) The temperature resistance depends on the material of thesecondary seals used.
The operating limits are defined by the PV factor which isdetermined for the sealing system characteristics and those ofthe application

Description

Single mechanical seal with an extremely versatile and functional design. The rotating part of the seal can be combined with a large variety of stationary parts, which offers a wide range of combinations.
Its structure allows secondary seals made of different materials to be used: FKM, Aflas, FFKM, FEP, NBR, HNBR and materials complying with special standards such as FDA, USP, EC, etc.
